Products / Wicher 520i

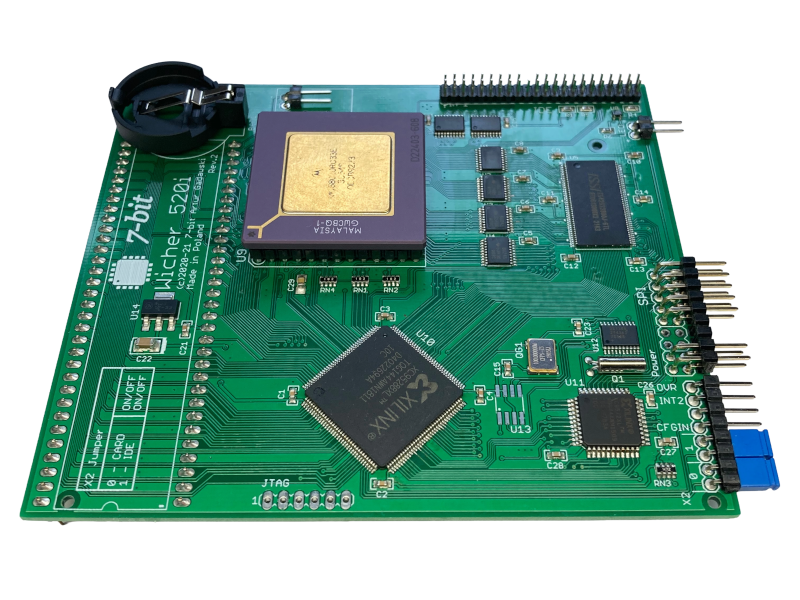

Wicher 520i turbo card is designed for installation inside the Amiga 500/500+ case. It supports full version of the 68020 processor, 32 MB of FAST RAM, and 2.5" IDE hard drives. It has the ability to set the processor clock speed up to 33 MHz.
Specification
- designed for Amiga 500/500+

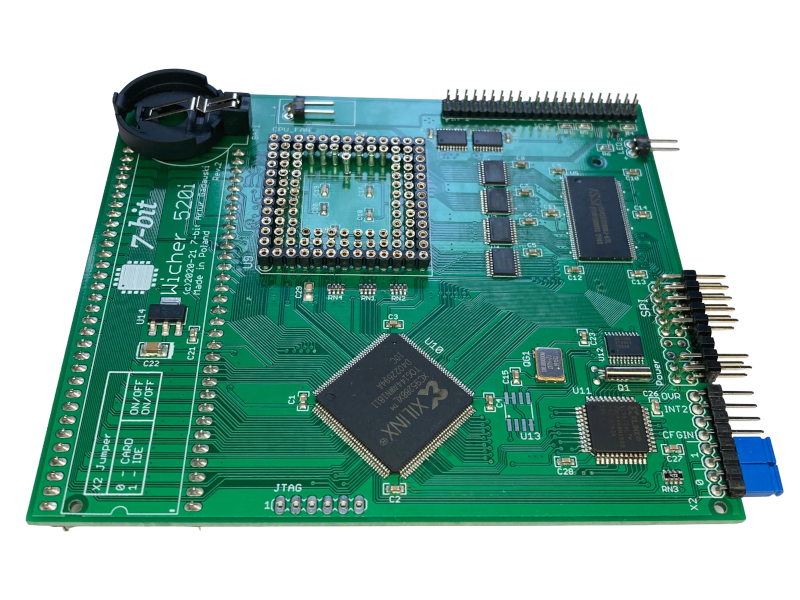

- supported processors: MC68020 (card does not have a factory-installed processor)
- CPU clock frequency: 20, 25, 33 MHz
- RAM memory: 32MB SDRAM
- IDE controller compatible with the A600 controller (minimum Kickstart >= 2.05 (37.350))
- MapRom, BootRom function
- SPI controller, RTC
- Kickstart: Kickstart 3.1 or higher is recommended.
SPI BusBoard
- MINI ENC28J60 ethernet module
- microSD card slot
Drivers
- SD Card
- DS1306 RTC
- ENC28J60 Ethernet
